2400 DSO Quick Check

This program was initially written for DOS in the 90's. When I recently found my old code I decided to convert it to a Win application.

It sets up a 2400 DSO for a series of tests to verify operation. As far as I remember all 2400 DSO's are supported (only have a 2430 to test on).

All communication between the program and user is done via the scope i.e. instructions and results are presented on the scope CRT and all functions are initiated via the Bezel buttons of the scope.


Version 2.0

  Initial version, converted and somewhat changed from DOS v1.33.


Here's a screen shot of what the PC screen will show:

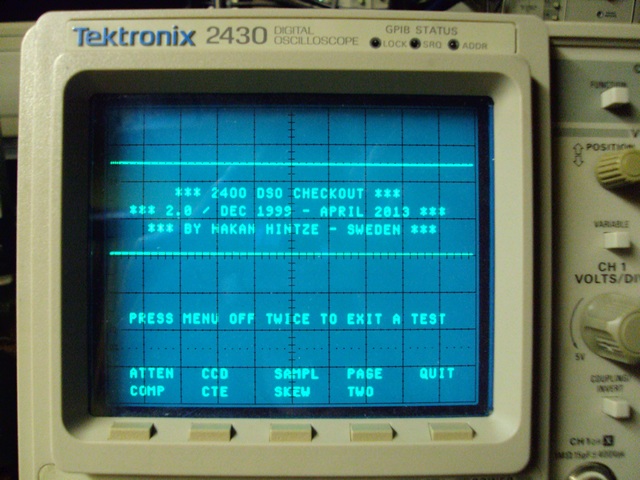

And this is how it looks on the scope:




You must have a NI GPIB card with the proper drivers installed.  Find  and download National Instruments GPIB card drivers here.

The Win version is expected to work on any PC/win OS (not 3.1) with a  correctly installed and working NI card. VB6 runtime modules are included in the setup.

For the DOS version the gpib.com setup file must include one device named TEKDEV1.


Download 2400DSO for DOS here

Download 2400DSO here
